Brass backflow prevention valve assemblies

FEBCO Backflow Prevention · Ships Nationwide

FEBCO Backflow Preventers

Pressure vacuum breakers, double check and reduced-pressure assemblies, plus repair parts — including the 765 PVB and 825Y RP, shipped fast from a nationwide warehouse network.

Shop Pressure Vacuum Breakers Shop Replacement Parts

✓ Ships nationwide from a warehouse near you✓ 30-Day Returns✓ Talk to a specialist: (210) 796-3843

Shop FEBCO by Type

Pressure Vacuum Breakers765 series PVB Reduced Pressure825Y RP / RPZ Double Check850 / 805Y DC Replacement PartsRepair & rebuild kits

FEBCO Product Lines

The 765 pressure vacuum breaker is the common choice for lawn irrigation, guarding against back-siphonage. It mounts above grade, typically at least 12 inches above the highest sprinkler head. For higher-hazard connections, the 825Y reduced-pressure (RP) assembly gives the highest level of protection — against both backpressure and back-siphonage — with a relief valve that can discharge water.

Lower-hazard, continuous-pressure lines use the 850 and 805Y double check assemblies. Keep any FEBCO assembly in service with repair kits — bonnet, check and relief-valve rubber parts. Always confirm the required assembly with your local code.

Home

Febco

The FEBCO brand is recognized worldwide as an innovative leader and producer of the most reliable backflow prevention assemblies.

Same-DayNext-Day
Febco T765DBV
765DBV, 3/4 in. Vacuum Breaker Backflow Preventer 765 Series (765-QT PVB 3/4)
Series 765 Pressure Vacuum Breakers are designed to be installed to provide protection against back siphonage of toxic or non-toxic liquids. They feature a durable bronze body and a check valve and air opening port in one assembly. Maximum Working Pressure: 150 psi (10.3 bar).Features<ul><li>All bronze body for durability. One check valve and an air opening port in one assembly</li><li>Lightweight poppet seals air opening under minimum flow conditions</li><li>Designed for minimum head loss</li><li>Simple service procedures. All internal parts serviceable in line from the top of the unit</li></ul>
Ships from manufacturer
Same-DayNext-Day
Febco T765EBV
1" 765 Pressure Vacuum Breaker Backflow Preventer, Quarter Turn, Freeze Sensor
FEBCO T765EBV 1" 765 Pressure Vacuum Breaker Backflow Preventer, Quarter Turn, Freeze SensorThe FEBCO T765EBV is a 1" 765 Pressure Vacuum Breaker Backflow Preventer, Quarter Turn,8 with a Freeze Sensor. Series 765 Pressure Vacuum Breakers includes a freeze sensor for use with SentryPlus Alert® technology to signal when ambient temperature approaches the freeze threshold. Activated through an add-on connection kit, the sensor also triggers freeze alerts to facility personnel. Connection kit available for building/irrigation management system (BMS/IMS).<h3 style="text-align: start">Features:</h3><ul><li>Sensor on PVB signals when temperature nears the freezing point</li><li>Freeze alerts help extend use of the PVB device by reducing damage and repair</li><li>Freeze alerts feature available with add-on connection kit for irrigation management systems</li></ul>
Ships from manufacturer
Same-DayNext-Day
Febco F825EBV
1" 825 Quarter Turn Reduced Pressure Zone Assembly, Y Pattern
<ul><li>Febco F825EBV</li><li>825Y-QT 1</li><li>1 IN Bronze Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Shutoff, Y Pattern</li></ul><ul><li>Bronze body construction for durability and long life</li><li>Modular relief valve for easy maintenance</li><li>Replaceable seat rings for longer valve life</li><li>NPT end connection</li><li>Meets all specifications of AWWA, ASSE</li><li>Low head loss for optimum performance</li><li>Quarter turn ball valves</li><li>Stainless steel springs</li><li>Nitrile elastomers</li></ul>
Ships from manufacturer
Same-DayNext-Day
Febco 0122980
2" Wye Strainer (LF650A 2)
Series LF650A Y strainers are installed in water piping systems to protect expensive equipment (such as backflow preventers) from damage or failure that can be caused by foreign material in the pipeline. The series LF650A features Lead Free* construction to comply with Lead Free* installation requirements. Maximum working pressure: 400psi (27.6 bar).Features<ul><li>Sizes 1⁄2 in. - 2 in. (15mm - 50mm)</li><li>Protects expensive equipment, such as backflow preventers, from damage or failure caused by foreign material in the pipeline</li><li>Tapped retainer cap with closure plug</li><li>Screen is 20 mesh 304 stainless steel</li></ul>
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco T1113
1" Double Check Valve Assembly 850 Small (850-QT 1)
The FEBCO Series 850 Double Check Valve Assembly Backflow Preventers are designed for non-health hazard applications. The Series 850 are designed to protect drinking water supplies from dangerous cross-connections in accordance with national plumbing codes and water authority requirements for non-potable service applications such as irrigation, fire line, or industrial processing. Small diameter sizes 1/2 to 2 inch. Standard assembly with ball valves or union end ball valves. End Connections: NPT ANSI / ASME B1.20.1.
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco F1313
1" Reduced Pressure Zone Assembly 860 Small (860-QT 1)
The FEBCO Series 860 Small Reduced Pressure Zone assemblies are for use in health-hazard applications. The series 860 protects drinking water supplies from dangerous cross-connections in accordance with national plumbing codes and water authority requirements for non-potable service applications such as irrigation, fire line, or industrial processing. Small diameter sizes 1/2 to 2 inch. Standard assembly with ball valves or union end ball valves. End Connection specified NPT ANSI / ASME B1.20.1.Features<ul><li>Suitable for use in industrial plants, hospitals, morgues, mortuaries, chemical plants, irrigation systems, boiler feed, and water lines</li><li>Primarily application for potable drinking water systems where code mandates protection from backpressure and backsiphonage conditions</li><li>In-line serviceable assembly requiring no special tools</li><li>Protects potable water against cross-connection contamination with high hazard (toxic) fluids in water services</li></ul>
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco T1112
.75" Double Check Valve Assembly 850 Small (850-QT 3/4)
The FEBCO Series 850 Double Check Valve Assembly Backflow Preventers are designed for non-health hazard applications. The Series 850 are designed to protect drinking water supplies from dangerous cross-connections in accordance with national plumbing codes and water authority requirements for non-potable service applications such as irrigation, fire line, or industrial processing. Small diameter sizes 1/2 to 2 inch. Standard assembly with ball valves or union end ball valves. End Connections: NPT ANSI / ASME B1.20.1.
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco T1115
1115, 1.5" Double Check Valve Assembly 850 Small (850-QT 1 1/2)
The FEBCO Series 850 Double Check Valve Assembly Backflow Preventers are designed for non-health hazard applications. The Series 850 are designed to protect drinking water supplies from dangerous cross-connections in accordance with national plumbing codes and water authority requirements for non-potable service applications such as irrigation, fire line, or industrial processing. Small diameter sizes 1/2 to 2 inch. Standard assembly with ball valves or union end ball valves. End Connections: NPT ANSI / ASME B1.20.1.
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco 765DUB
765DUB, U765-QT 3/4 Inch Bronze Pressure Vacuum Breaker Backflow Preventer
<ul><li>Febco 765DUB</li><li>U765-QT 3/4</li><li>3/4 Inch Bronze Pressure Vacuum Breaker Backflow Preventer, Quarter Turn Shutoffs, Union Connections</li></ul>
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco F1316
2" 860 Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn
The FEBCO Series 860 Small Reduced Pressure Zone assemblies are for use in health-hazard applications. The series 860 protects drinking water supplies from dangerous cross-connections in accordance with national plumbing codes and water authority requirements for non-potable service applications such as irrigation, fire line, or industrial processing. Small diameter sizes 1/2 to 2 inch. Standard assembly with ball valves or union end ball valves. End Connection specified NPT ANSI / ASME B1.20.1.Features<ul><li>Suitable for use in industrial plants, hospitals, morgues, mortuaries, chemical plants, irrigation systems, boiler feed, and water lines</li><li>Primarily application for potable drinking water systems where code mandates protection from backpressure and backsiphonage conditions</li><li>In-line serviceable assembly requiring no special tools</li><li>Protects potable water against cross-connection contamination with high hazard (toxic) fluids in water services</li></ul>
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco T765GBV
1 1/2" 765 Pressure Vacuum Breaker Backflow Preventer, Q-Turn, Freeze Sensor
Series 765 Pressure Vacuum Breakers are designed to be installed to provide protection against back siphonage of toxic or non-toxic liquids. They feature a durable bronze body and a check valve and air opening port in one assembly. Maximum Working Pressure: 150 psi (10.3 bar).Features<ul><li>All bronze body for durability. One check valve and an air opening port in one assembly</li><li>Lightweight poppet seals air opening under minimum flow conditions</li><li>Designed for minimum head loss</li><li>Simple service procedures. All internal parts serviceable in line from the top of the unit</li></ul>
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco F1312
3/4" 860 Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Shutoff
The FEBCO Series 860 Small Reduced Pressure Zone assemblies are for use in health-hazard applications. The series 860 protects drinking water supplies from dangerous cross-connections in accordance with national plumbing codes and water authority requirements for non-potable service applications such as irrigation, fire line, or industrial processing. Small diameter sizes 1/2 to 2 inch. Standard assembly with ball valves or union end ball valves. End Connection specified NPT ANSI / ASME B1.20.1.Features<ul><li>Suitable for use in industrial plants, hospitals, morgues, mortuaries, chemical plants, irrigation systems, boiler feed, and water lines</li><li>Primarily application for potable drinking water systems where code mandates protection from backpressure and backsiphonage conditions</li><li>In-line serviceable assembly requiring no special tools</li><li>Protects potable water against cross-connection contamination with high hazard (toxic) fluids in water services</li></ul><h2 style="text-align: start"></h2>
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco F1315
1.5" Reduced Pressure Zone Assembly 860 Small (860-QT 1 1/2)
The FEBCO Series 860 Small Reduced Pressure Zone assemblies are for use in health-hazard applications. The series 860 protects drinking water supplies from dangerous cross-connections in accordance with national plumbing codes and water authority requirements for non-potable service applications such as irrigation, fire line, or industrial processing. Small diameter sizes 1/2 to 2 inch. Standard assembly with ball valves or union end ball valves. End Connection specified NPT ANSI / ASME B1.20.1.Features<ul><li>Suitable for use in industrial plants, hospitals, morgues, mortuaries, chemical plants, irrigation systems, boiler feed, and water lines</li><li>Primarily application for potable drinking water systems where code mandates protection from backpressure and backsiphonage conditions</li><li>In-line serviceable assembly requiring no special tools</li><li>Protects potable water against cross-connection contamination with high hazard (toxic) fluids in water services</li></ul>
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco 905050
1" 1.25" Poppet Assembly Kit; RK-765 Series
This poppet assembly kit includes the parts necessary to repair or replace the poppet of a 1 and 1 1/4 inch pressure vacuum breaker. All parts are genuine and original to the valve.Features<ul><li>Fits 1 and 1 1/4 inch pressure vacuum breaker</li><li>All parts are made of high quality materials</li><li>Factory replacement parts</li><li>No special tools required for servicing</li></ul>
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco 905048
1" & 1.25" Bonnet Assembly Kit; RK-765 Series
This bonnet assembly kit includes the parts necessary to repair or replace the bonnet assembly of a 1 and 1 1/4 inch pressure vacuum breaker. This kit consists of bonnet, O-ring, spring, E-ring, washer, and stem. All parts are genuine and original to the valve.Features<ul><li>All parts are made of high quality materials</li><li>Factory replacement parts</li><li>No special tools required for servicing</li><li>Fits 1 and 1 1/4 inch pressure vacuum breaker</li></ul>
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco 0122965
0122965 LF850U-QT 1 Inch Lead Free Bronze Double Check Valve Backflow Preventer Assembly
<ul><li>Febco 0122965</li><li>LF850U-QT 1</li><li>1 In Lead Free Bronze Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff, Union, Small Diameter</li></ul>
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco 0683043
LF850-QT 2, 2 In Lead Free Bronze Double Check Valve Backflow Preventer Assembly
<ul><li>Febco 0683043</li><li>LF850-QT 2</li><li>2 In Lead Free Bronze Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff, Small Diameter</li></ul>
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco 0683042

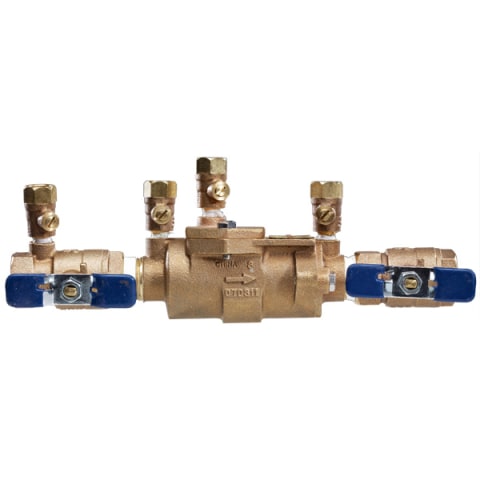

LF850-QT 1 1/2 In Lead Free Bronze Double Check Valve Backflow Preventer Assembly
<ul><li>Febco 0683042</li><li>LF850-QT 1 1/2</li><li>1 1/2 In Lead Free Bronze Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff, Small Diameter</li></ul>
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco 825GBV70

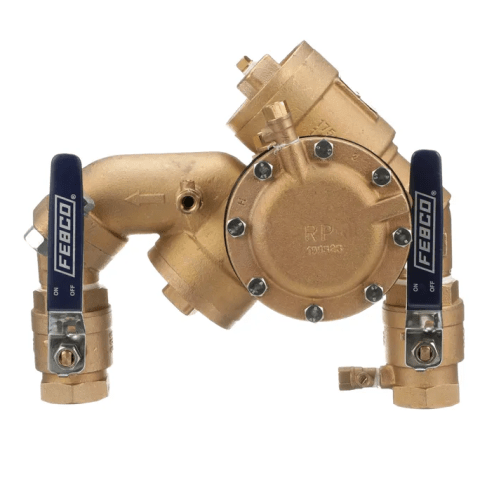

1.5" N Pattern Reduced Pressure Zone Backflow Preventer with Shutoff Valve (825YA-QT 1 1/2)
<ul><li>Febco 825GBV70</li><li>825YA-QT 1 1/2</li><li>1.5" N Pattern Reduced Pressure Zone Backflow Preventer with Shutoff Valve</li></ul><ul><li>Bronze body</li><li>Modular relief valve and check valves for easy maintenance</li><li>Replaceable seat rings for longer valve life</li><li>Integral flanged union connections allow assembly to be removed from the line for freeze protection or maintenance without the danger of spool substitution</li><li>Meets all specifications of AWWA, ASSE</li><li>Low head loss for optimum performance</li><li>Quarter turn ball valves</li><li>Reduces installation time, labor costs and materials</li><li>Eliminates pipe elbows, nipples and unions from the installation</li></ul>
Out of stock
Ships from manufacturer
Same-DayNext-Day
Febco 0683040
0683040 LF850-QT 1 Inch Lead Free Bronze Double Check Valve Backflow Preventer Assembly
<ul><li>Febco 0683040</li><li>LF850-QT 1</li><li>1 In Lead Free Bronze Double Check Valve Backflow Preventer Assembly, Quarter Turn Shutoff, Small Diameter</li></ul>
Out of stock
Ships from manufacturer

FEBCO Backflow FAQ

What’s the difference between a PVB and an RP assembly?

A pressure vacuum breaker (PVB) protects against back-siphonage only and is common for lawn irrigation, installed above grade. A reduced-pressure (RP) assembly protects against both backpressure and back-siphonage and gives the highest level of protection. Your local code sets which one is required.

Which FEBCO model do I need for lawn sprinklers?

Many residential irrigation systems use the 765 PVB, but the required assembly depends on your local code and the hazard level of the connection. Check with your water authority before you buy.

Can a FEBCO backflow preventer be repaired instead of replaced?

Usually yes. FEBCO sells repair kits — bonnet, check and relief-valve rubber parts — so a leaking or failed assembly can often be rebuilt rather than fully replaced.

Do backflow preventers need to be tested?

Most testable assemblies — PVB, RP and double check — must be tested by a certified tester, commonly once a year, as required by your local code. Reduced-pressure and double-check assemblies have test cocks for this purpose.
