DIG SM50 Adjustable Micro Sprayer Kit
This comprehensive kit provides all the necessary components to easily install a system featuring eight adjustable micro sprayers, starting from an external garden hose faucet.
Enjoy the convenience of automation by utilizing one of DIG’s battery-operated or solar-powered controllers, ensuring efficient and hassle-free watering.
Experience expansion capabilities up to 1000 sq ft by incorporating additional 1/2″ drip tubing and micro sprayers, resulting in a remarkable total flow rate of up to 220 gallons per hour (GPH).
Each micro sprayer offers an adjustable flow rate, ranging from 0-26 GPH at 25 PSI, allowing precise control over water distribution.
Choose from three options of adjustable micro sprayers with 360°, 180°, and 90° patterns, providing flexibility to meet your specific watering needs.
This kit contains a total of 46 pieces, guaranteeing a complete installation package for your convenience.
Installation, expansion, and customization are made effortless due to the kit’s simplicity and user-friendly design.
Experience gentle watering with minimal water usage, reducing plant stress and minimizing water runoff compared to conventional sprinkler systems.
No need for glue or tools during installation, ensuring a hassle-free setup process.
Recommended spacing between micro sprayers is 8′ to 12′ apart, allowing for optimal water distribution.
Enjoy increased watering flexibility, adapting to the unique requirements of your garden or landscape.
The flexible poly tubing enables the irrigation system to smoothly curve along with the layout of your plants, providing enhanced versatility.
The micro sprayers feature an adjustable knob that regulates the flow, allowing for precise control over the wetting area’s diameter.
Enjoy flexibility in irrigation frequency, while simultaneously minimizing soil erosion and surface runoff.
Ideal for areas where low-flow overhead irrigation is preferred or in situations where drip emitters or conventional sprinkler systems are impractical.

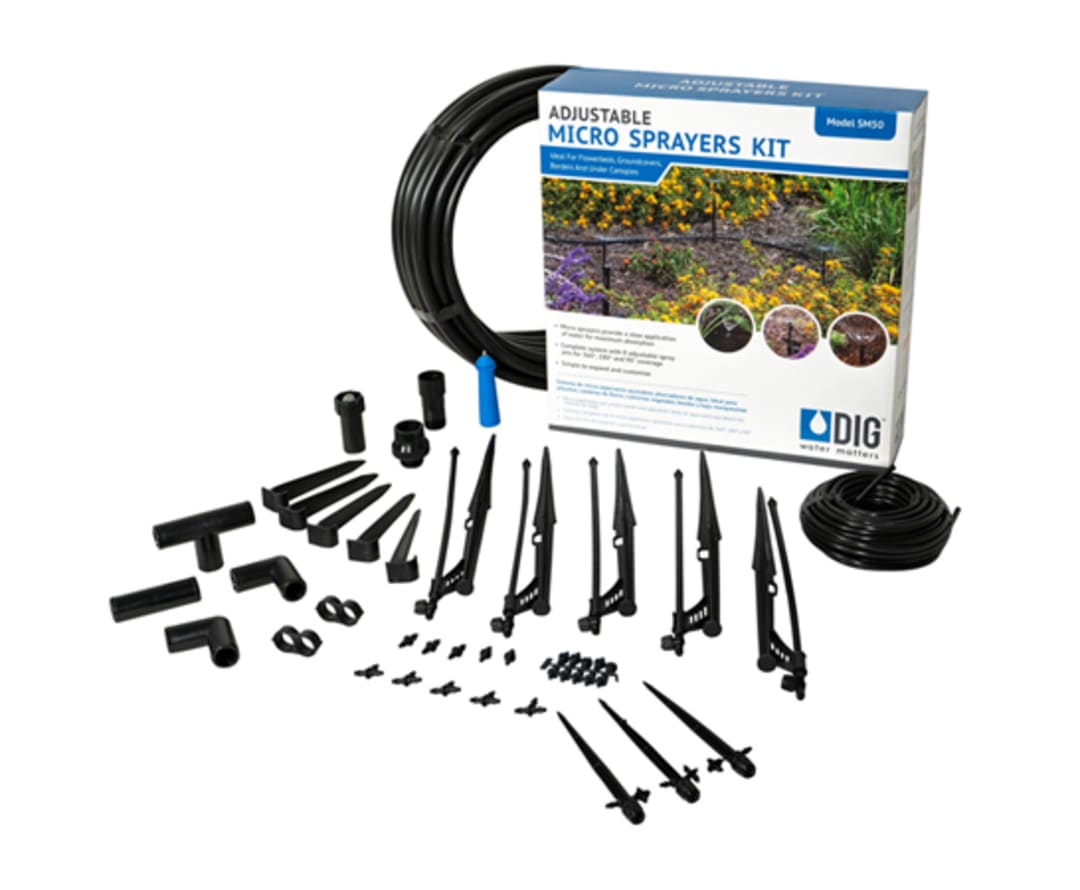

1 x 3/4" backflow preventer (part #D45)
1 x 3/4" 25-PSI preset pressure regulator (part #D46)
1 x 3/4" swivel adapter with screen (part #C34)
1 x 50' roll of 1/2" drip tubing with .600" ID x .700" OD (part #B35)
1 x 50' roll of 1/4" micro tubing with .170" ID x .250" OD (part #B38P)
1 x 1/2" compression tee (part #c35)
2 x 1/2" compression elbows (part #c36)
1 x 1/2" compression coupling (part #c33)
5 x 1/4" barbed connectors (part #H80)
5 x 1/4" barbed tees (part #H82)
2 x Adjustable micro sprayer assemblies with a 13" stake, poly riser and barb (part #308-1B) (180°, 0-26 GPH, up to a 10' radius)
2 x Adjustable micro sprayer assemblies with a 13" stake, poly riser and barb (part #309-1B) (90°, 0-26 GPH, up to a 9' radius)
1 x Adjustable micro sprayer assembly with a 13" stake, poly riser and barb (part #300-1B) (360°, 0-26 GPH, up to a 20' radius, full circle)
3 x Adjustable micro sprayer on a 6" stake (part #410B) (360°, 0-20 GPH, up to a 10' diameter)
5 x 1/2" holder stakes (part #R60)
2 x Figure "8" hose ends (part #F68B)
10 x Goof plugs (part #G79B)
1 x Hole punch
1 x Instruction manual
Product Name | SM50 Adjustable Micro Sprayer Kit |
Manufacturer Part Number | SM50 |
Sku | DIG-SM50 |
