Rain Bird ESPLXME2P - Controller 12-station base unit expandable to 48 stations

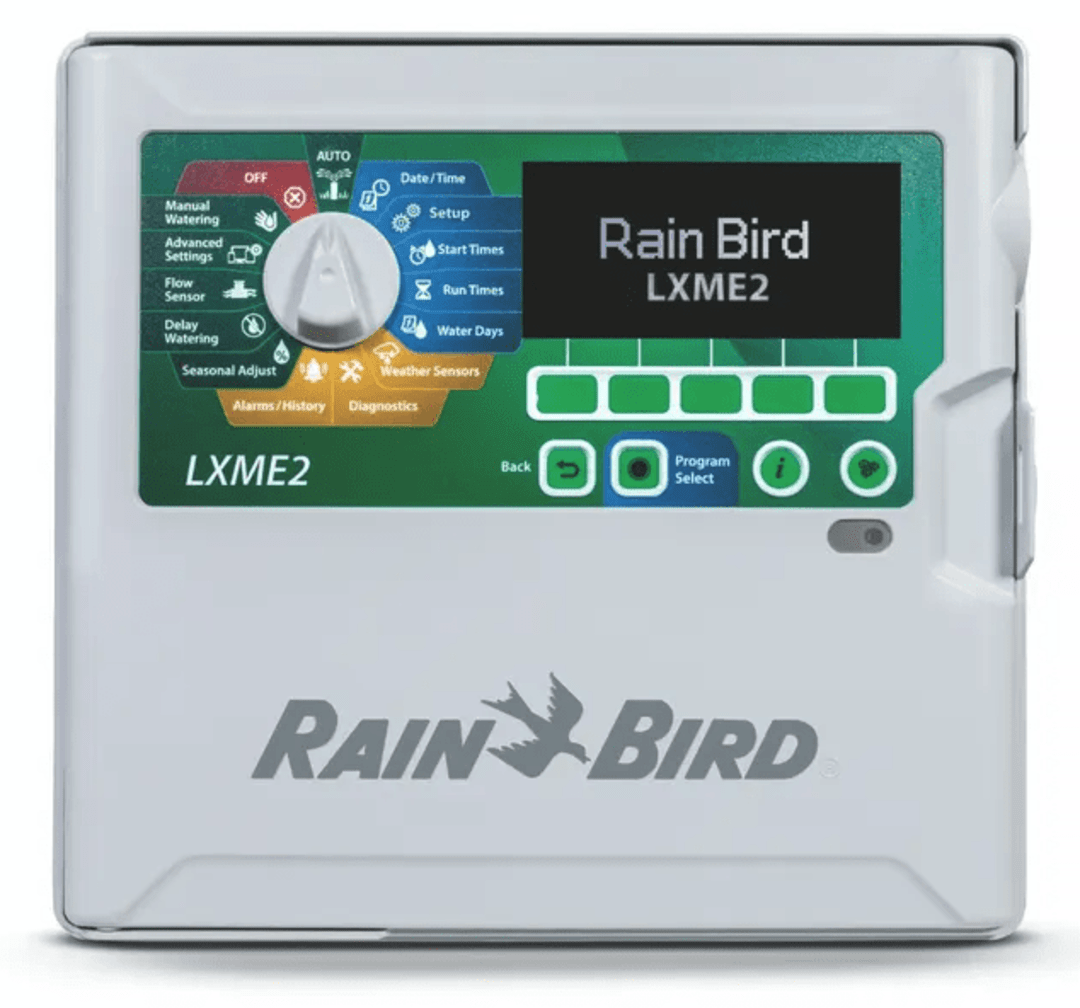

Rain Bird ESPLXME2P
The Rain Bird ESP-LXME2P is a 12-station base modular irrigation controller, expandable to 48 stations with optional modules. Designed for residential and light commercial sites that may grow without replacing the controller. The "P" model designates the plastic-cabinet configuration.
- 12-station base, modular expansion up to 48 stations
- Plastic indoor/outdoor cabinet
- Multiple independent programs and start times
- Integrated flow sensing input
Genuine Rain Bird, in stock and ships fast from Total Sprinkler.
Product Overview
ESPLXME2P - Controller 12-station base unit expandable to 48 stations
Controller Features
Large backlit LCD display with easy to navigate softkey user interface
Hot-swappable modules, no need to power down the controller to add/remove modules
MV1 – Normally closed or Normally open Master valve/pump start circuit
Master valve delay and inter-station delay
6 user-selectable languages
Non-Volatile (100- year) program memory
Standard 10kV surge protection
The front panel is removable and programmable under battery power
Station Count: 12 Station Base Unit, Expandable Up to 48 Stations. (12 Station Expansion Modules)
FloZones (Master Valve + Flow Sensor.): 1 (One)
Booster Pump:V. 2/P for Station Level Booster Pump ControlPrograms: 40
Simulstations: 5
Start Times: 10 Per Program
Flow Management: Yes (Factory Installed PRO Smart Module)
Optional Accessories: Powder-Coated or Stainless Steel Metal Cabinets and Pedestals.
Specs & Details
| Product Name | ESPLXME2P - Controller 12-station base unit expandable to 48 stations |
| Manufacturer Part Number | ESPLXME2P |
| Sku | RBD-58-5205 |
| UPC | 077985083700 |
- Rain Bird ESP-LXME2 Controller Manual|
