Product Out of Stock
Sorry, this product is temporarily out of stock.

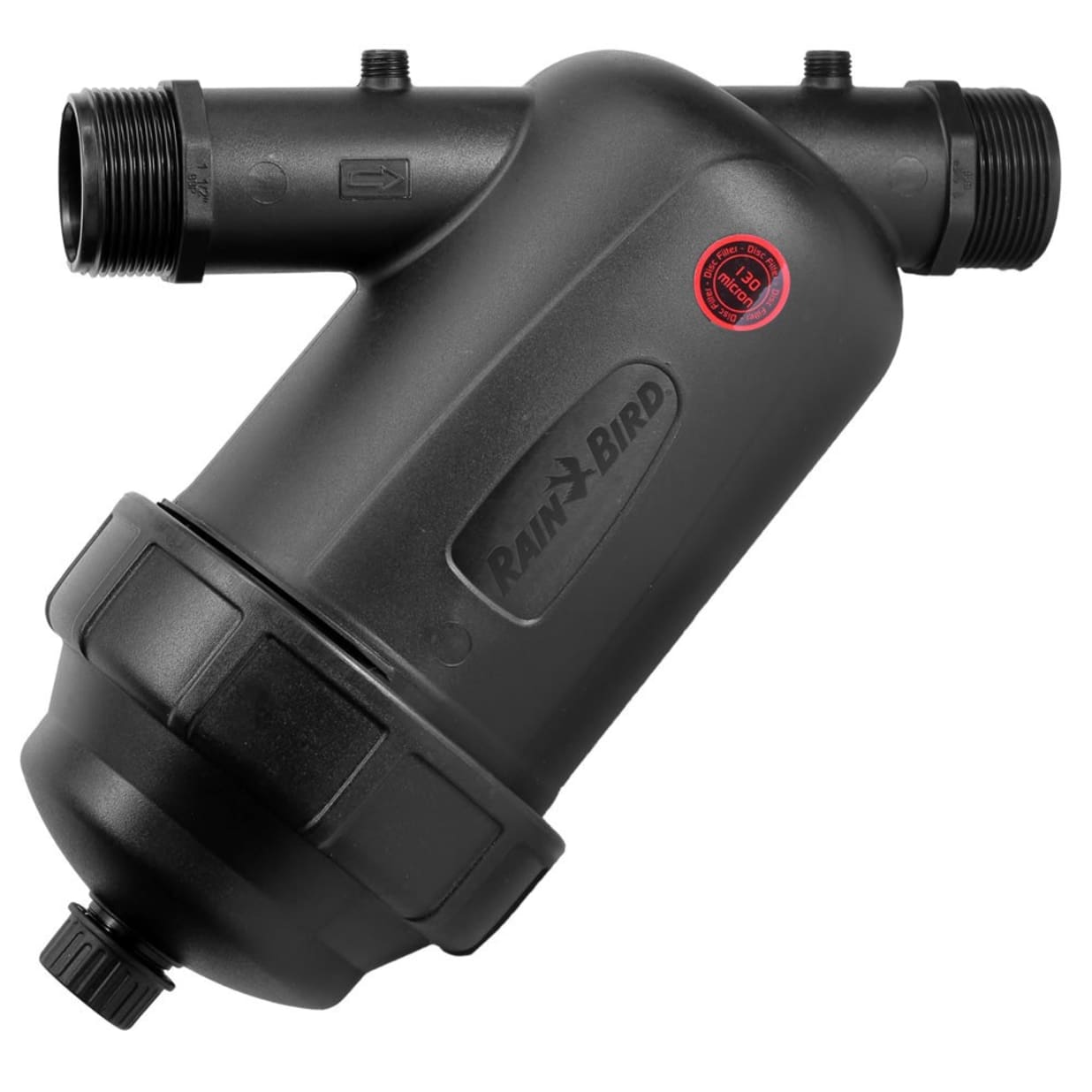

Rain Bird LCRBY150D 1.5" Large Capacity Disc Filter NPT
Rain Bird X14605
Rain Bird X14605 LCRBY150D 1.5" Large Capacity Disc Filter NPT, these filters provide large filtration capacity for residential, commercial, and municipal drip applications. This means less cleaning and lower maintenance costs. The filter body and cover are made of high impact thermal plastic, rated to withstand water up to 140° F (60° C) and pressures up to 116 psi (8 bar). With flow rates ranging from 33 gpm to 110 gpm, these filters are perfect for larger drip irrigation zones.
Product Overview
1 1/2 in. Large Capacity Disc Filter - NPT
Up to 10X increase in filtration area
Larger filtration area equals less frequent cleaning, which lowers overall maintenance costs
Disc Filtration is ideal for dirty water supplies due to increased filtration area. Particularly effective for water with high organic content
Ideal for large irrigation zones that require a higher flow rate
120 mesh/130 micron filtration level
Max recommended flow: 88 gpm (20 m3/h)
Filtration area: 83 in2 (535 cm2)
Recommended Installation: Install after a valve or shut-off point, where the filter will not be under constant pressure.
Specs & Details
| Product Name | LCRBY150D 1.5" Large Capacity Disc Filter NPT |
| Manufacturer Part Number | X14605 |
| Sku | RBD-58-2426 |
| UPC | 077985035914 |
California Proposition 65 Warning
WARNING: This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. For more information: www.p65Warnings.ca.gov
