PGP-ADJ vs PGP Ultra: what the upgrade actually changes

Hunter's PGP (Pro Gear Drive) is the flagship residential gear-driven rotor, 30+ years in the catalog and the rotor most install contractors reach for when the radius is wrong for a fixed spray. Two current variants compete on the shelf. The standard PGP-ADJ is the classic body, sold without a nozzle. The PGP Ultra is the upgraded model: an internal rack with 12 pre-installed nozzles, a slip-clutch turret that won't strip if a kid twists the head by hand, a reclaimed-water identification marker for code-restricted zones, and a longer life expectancy claim from Hunter on the gear train and seal.

Per Hunter's PGP-ADJ and PGP Ultra spec sheets, both rotors share the same radius range, the same operating pressure window, and the same nozzle thread. The PGP Ultra is a feature upgrade, not a performance upgrade. The question is whether the features justify the $4 to $8 price-per-head premium for your install, and on a 30-head residential zone that's $120 to $240 of total project cost.

PGP-ADJ vs PGP Ultra at a glance

Per Hunter's published PGP-ADJ and PGP Ultra spec sheets:

When the standard PGP-ADJ is the right call

The Ultra's upgrades address specific install scenarios. If yours isn't one of them, the PGP-ADJ delivers the same throw, the same arc range, and the same operating pressure for less per head.

Spec the PGP-ADJ when:

• Replacement-only installs matching the existing PGP body type. If you're swapping three failed rotors on a 30-head zone, mixing the new PGP Ultra into a deck of standard PGP-ADJ heads creates two cap colors on the same valve zone, and the next homeowner sees the visible mismatch and assumes one is "wrong."
• Small residential lawns. A 6-head front yard at $5/head saved on the body translates to $30, enough to buy the nozzles separately and still come out ahead.
• Budget-constrained jobs. Tract-home builds, rental properties, contractor specs where the line item is "Hunter rotor" without a model call. The PGP-ADJ ships nozzle-less; the installer hand-picks the nozzle that matches each head's arc and radius, which is what good install practice does anyway.
• Potable-only sites with no code restriction on reclaimed water. The Ultra's purple-cap option is a code-compliance feature, not a performance feature. If your municipality has no reclaimed-water identification requirement, you're paying for a marker that does nothing for you.

When the PGP Ultra is worth the $4 to $8 premium per head

Four scenarios make the Ultra the right specification. Each addresses a specific upgrade the standard PGP-ADJ doesn't carry.

1. Reclaimed-water exposure. Many jurisdictions in California's recycled-water districts, and parts of Arizona, Florida, and Nevada, require visible purple identification on any irrigation head connected to a reclaimed-water main. The Ultra ships with a purple-cap option that satisfies the code marker. The standard PGP-ADJ does not; aftermarket purple sleeves and paint exist but inspectors increasingly reject them. If reclaimed water is in the zone, the Ultra is the body that passes inspection on first pass.

2. Longer zone life on a tough install. The Ultra's slip-clutch turret and improved rubber cover seal claim a longer service life than the standard PGP. Hunter's marketing language is "the most reliable PGP ever," not a number we'd quote without a citation. The slip-clutch alone removes the most common gear-strip failure on PGP rotors: a homeowner or service tech rotating the turret by hand. On a zone in heavy use, such as commercial sites, daily-watering schedules, or hardscape-adjacent installs where kids reach the heads, the Ultra survives field handling the standard PGP-ADJ doesn't.

3. Install location with limited future access. If the rotor is going under a shrub bed that's about to be planted out, behind a fence line, or in any spot where pulling the body for service in year 4 will be expensive, the Ultra's reliability premium amortizes faster. A standard PGP-ADJ that fails in a hard-to-reach spot costs more to swap than the original part-price delta ever was.

4. Commercial-adjacent installs. Light-commercial sites such as HOA common areas, business-park entries, and school grounds see more head abuse and shorter maintenance windows than residential. The Ultra's internal nozzle rack also speeds field service: instead of carrying a nozzle bag, the tech swaps the body and the next nozzle is already mounted on the rack. On a contractor's truck inventory, that's a real time savings across a season.

If none of these four scenarios apply, the PGP-ADJ is the right body.

What both rotors share

The PGP-ADJ and PGP Ultra are mechanically and hydraulically identical at the core. Both run the same gear-driven rotation mechanism. Both accept the full Hunter PGP nozzle set; interchange the nozzle, and you change the radius and the flow rate while the body underneath stays the same. Both pair with a 40 PSI PRS40 spray body when feeding rotary nozzles, though for an MP Rotator zone the dedicated PRS40 body, not a PGP rotor, is the right call. Arc adjustment on both uses the same ratchet collar plus top-slot screwdriver mechanism. Riser heights are identical: 4", 6", 12", and shrub.

Featured Hunter PGP rotors in stock

Four in-stock SKUs cover the common spec cases:

HUN-58-0032
PGP-ADJ 4"

HUN-58-0034
PGP-ADJ + #7 nozzle

HUN-58-1350
PGP Ultra 4"

HUN-58-0031
PGP Ultra 12"

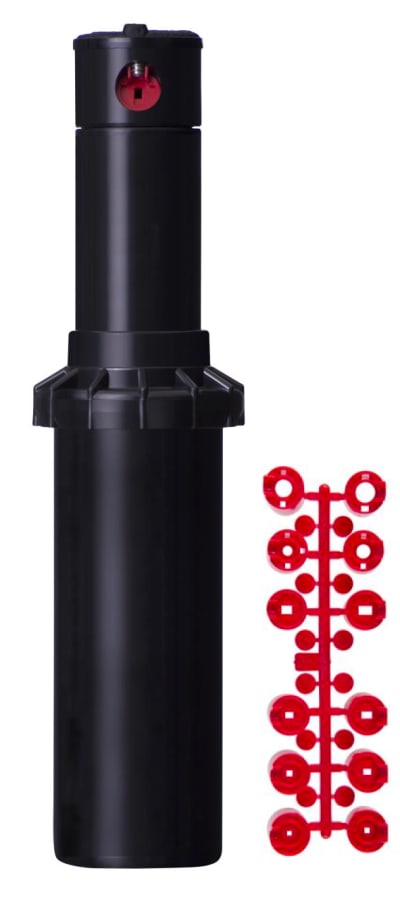

• HUN-58-0032, Hunter PGP-ADJ 4" Pop-Up Rotor. The standard residential default. Black cap, no nozzle included, lowest per-head cost.

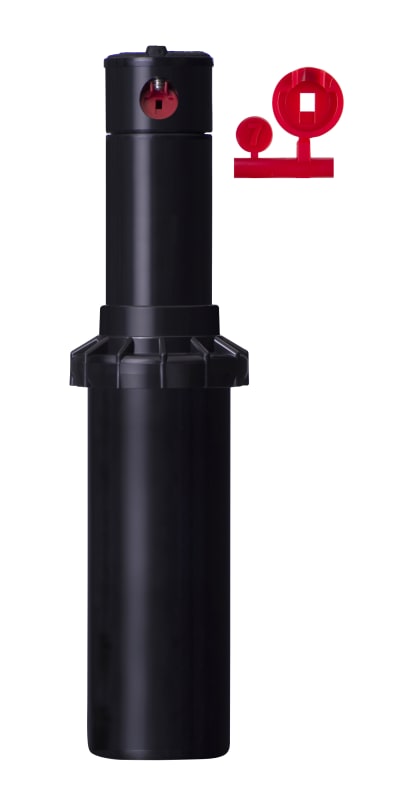

• HUN-58-0034, Hunter PGP-ADJ 4" Rotor with #7 Nozzle. The bundled version with Hunter's #7 nozzle factory-installed; one-line ordering for jobs that don't need nozzle-level spec.
• HUN-58-1350, Hunter PGP Ultra 4". The 4" Ultra body, slip-clutch turret, internal nozzle rack, purple-cap option for reclaimed-water zones.
• HUN-58-0031, Hunter PGP Ultra 12". The Ultra's shrub-clearance variant for beds and taller turf.

Keep going

For the full Hunter rotor lineup, including the smaller PGJ family and the long-throw I-Series, browse the Hunter Rotors category. The broader Hunter brand catalog covers controllers, valves, and nozzles for the rest of the system.
