PGJ

The highly durable PGJ offers all the benefits of a large rotor in a compact, spray-sized package, with water-efficient nozzles and easy arc adjustment.

Radius 15' to 34'

Flow 0.42 - 4.3 GPM

Inlet Size ½"

Compact: Get all the benefits of a rotor in a spray-sized package

Short Radius: Get close-in rotor coverage with a 15' minimum radius

Reliable: The PGJ is engineered to take on harsh conditions for years on end

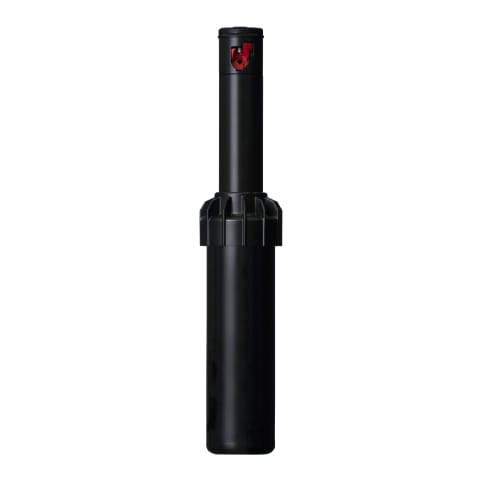

This model: PGJ-04

Key Benefits

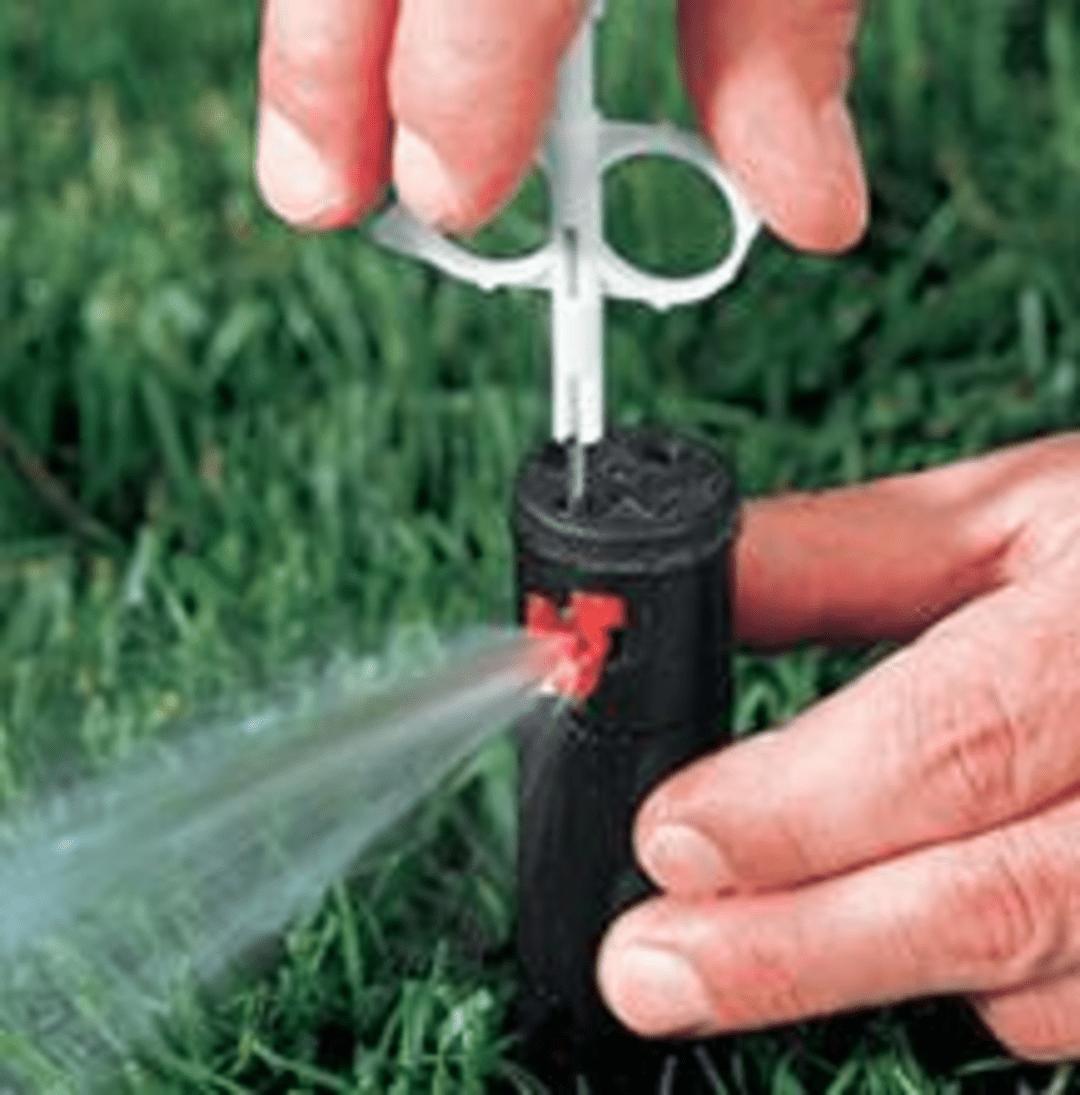

• Headed and slotted setscrew allows radius adjustment with a Hunter Wrench or flat-blade screwdriver

• QuickCheck™ Arc Mechanism for fast arc adjustment

• Adjustable arc from 40° to 360° to keep water in the appropriate areas

• Standard factory-installed 2.0 nozzle speeds installation

Headed and Slotted Setscrew PGJ

• Use a slotted screwdriver or the Hunter wrench for easier and simpler adjustments as needed.

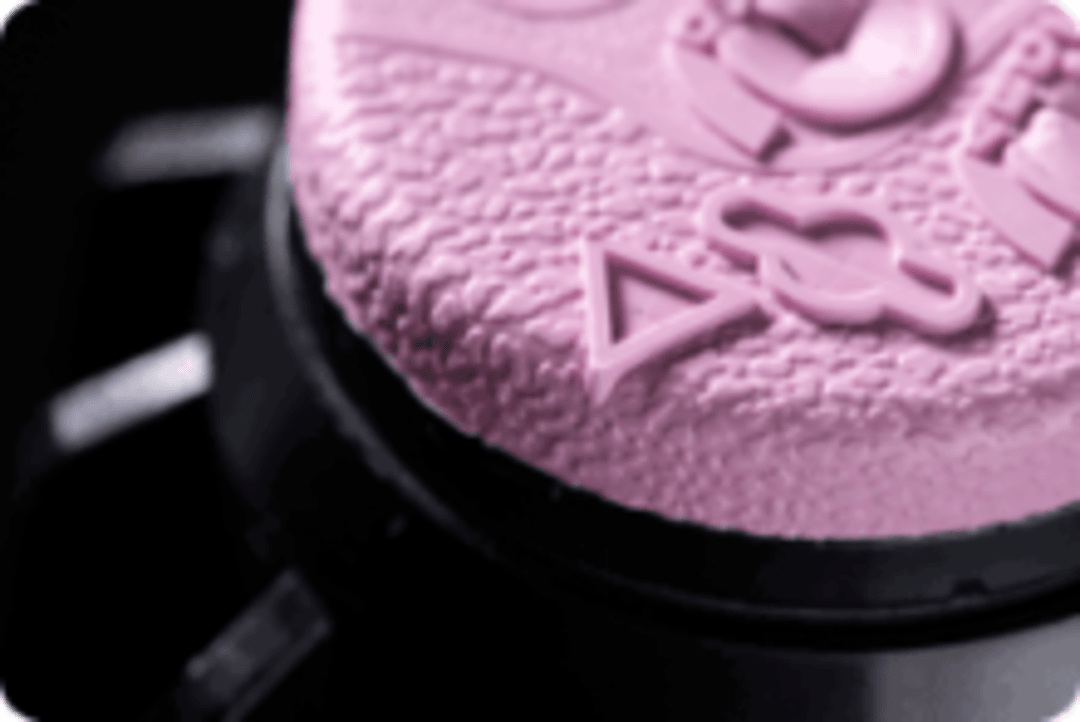

Optional Reclaimed Water ID

• Purple caps indicate where non-potable irrigation water is being used.

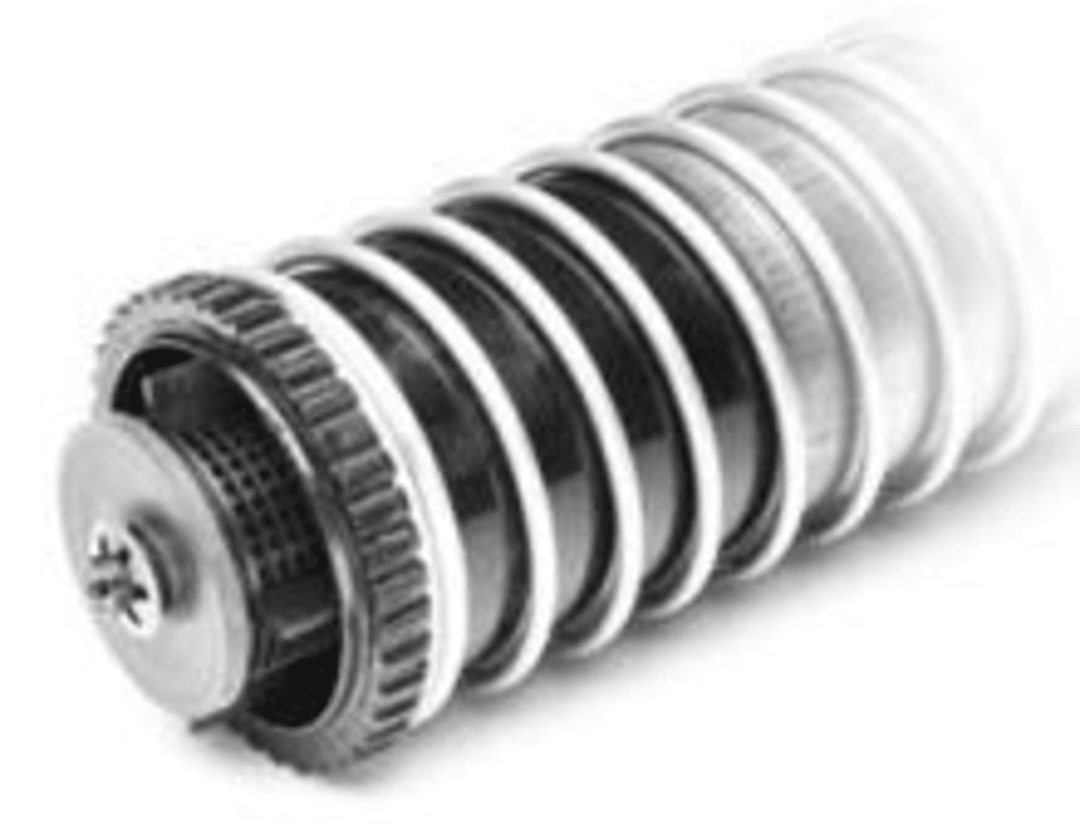

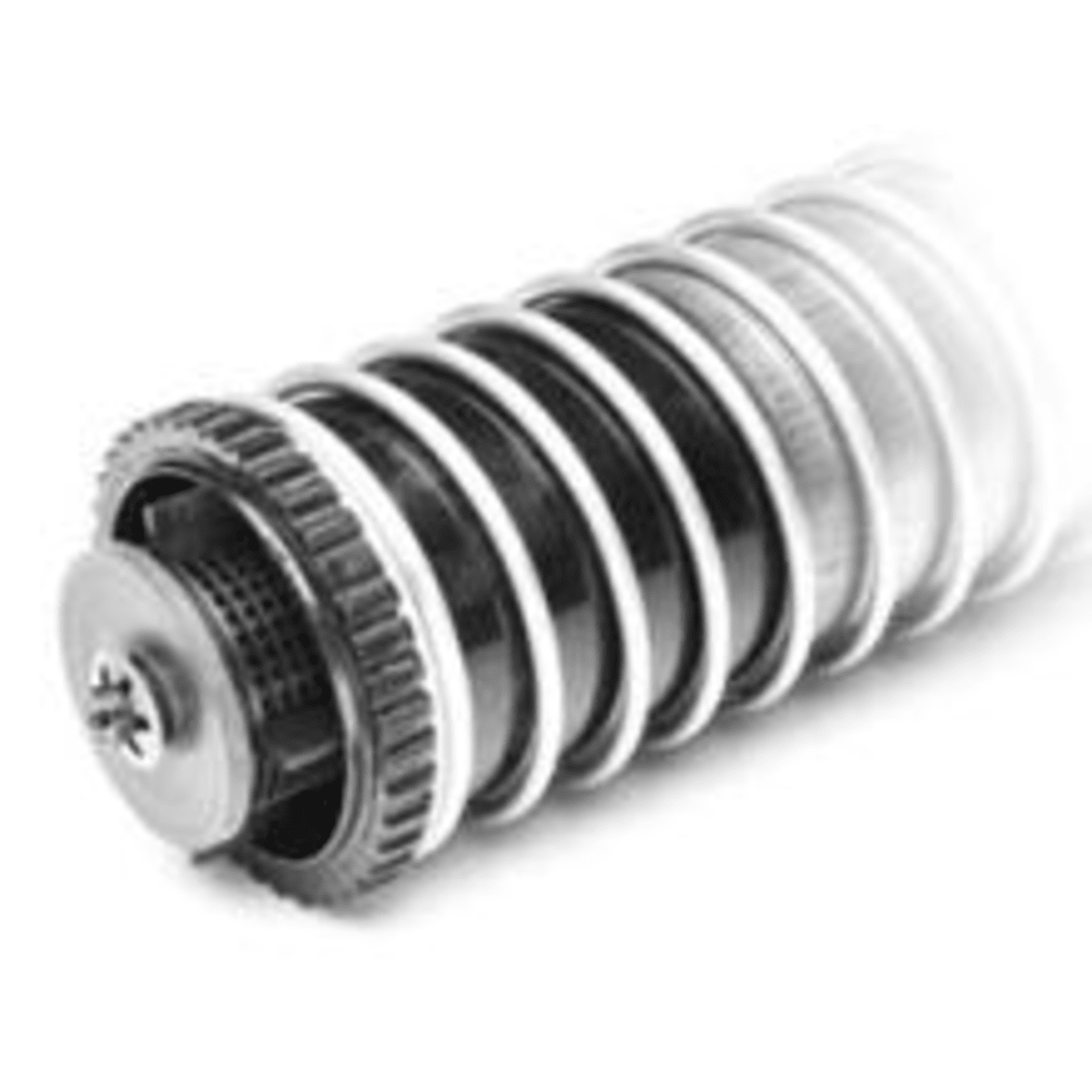

Drain Check Valve (Up to 10 ft. of Elevation)

• The drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.
