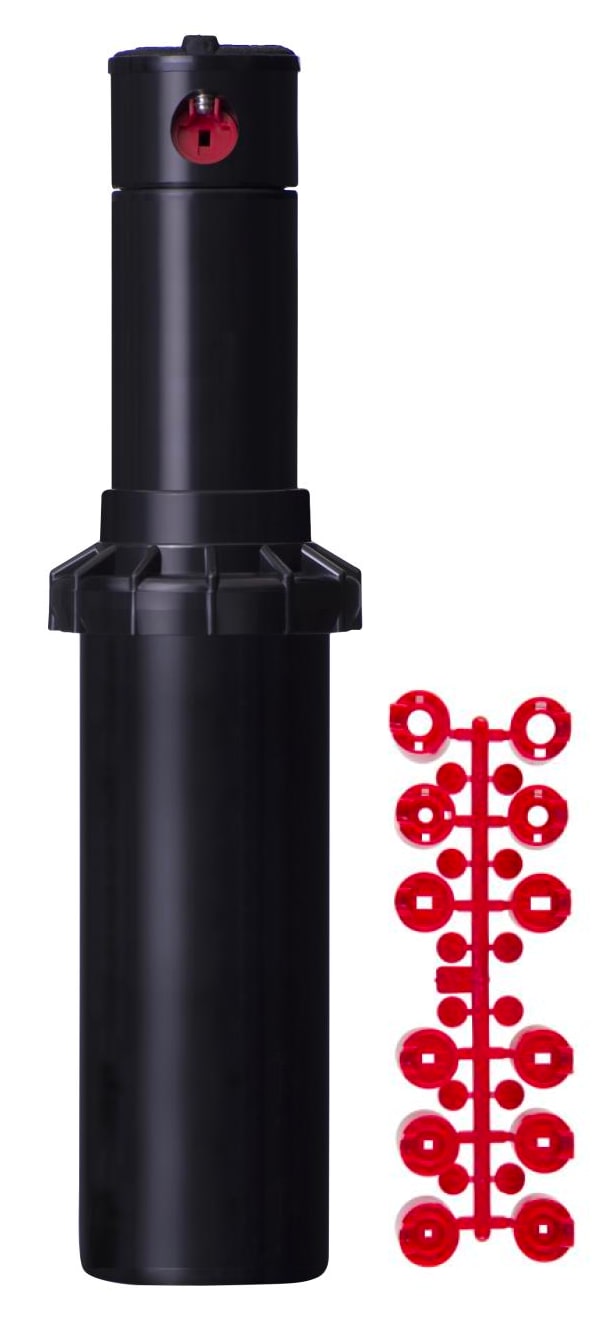

Rain Bird 5004PCSAM - 4 in. 5000 Series Part-Circle Pattern Pop-up Rotor with SAM Check Valve
Rain Bird Y55007
Rain Bird - 5004PCSAM
4 in., 5000 SAM Series Rotors
“PC” for 40-360 degrees
Seal-A-Matic™ (SAM) check valve
Product Overview
5004PCSAM - 4 in. 5000 Series Part-Circle Pattern Pop-up Rotor with SAM Check Valve
4 in. 5000 Series Part-Circle Pattern Pop-up Rotor with SAM Check Valve
Faster maintenance with a new self-cleaning arc adjustment screw
Heavy-duty cover assembly for extra durability
Rain Curtain™ Nozzles
Slip clutch mechanism for quick adjustment on installation
Heavy-duty retract spring assures positive pop-down
Top-adjust arc adjustment requiring only a flat-blade screwdriver
40 - 360° arc rotation and reversing full circle rotation in one
Radius adjustment screw allows up to 25% radius reduction without changing nozzles
Pressure-activated multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
Reinforced flow path for additional side load strength
Additional O-rings and seals for extra protection in "gritty" water
Seal-A-Matic (SAM) check valve holds up to 7 feet (2.1m) of elevation change to prevent puddling and erosion caused by low head drainage
Seal-A-Matic™ (SAM) check valve
Built-in Seal-A-Matic™ (SAM) check valve. Eliminates the need for under-the-head check valves. No parts to be installed at the site
Stronger retract spring to accommodate elevation changes up to 14’ (4.2 m). One of the strongest springs in the industry
Prevents drainage from spray heads at lower elevations. Stops water waste. Ends landscape damage due to flooding and/ or erosion
Helps retain water in lateral pipes which reduces wear on system components by minimizing water hammer during start-up
Designed for use with all Rain Bird plastic spray head nozzles
More Rotors...!
Specs & Details
| Product Name | 5004PCSAM - 4 in. 5000 Series Part-Circle Pattern Pop-up Rotor with SAM Check Valve |
| Manufacturer Part Number | Y55007 |
| Sku | RBD-58-1720 |
| UPC | 753810013172 |
- Brochure|
- Tech Sheet|
